Hard Chrome Plated Bars - High Quality Hard Chrome Bars Manufacturers

  • 1
  • 2

Place of Origin : CN

Brand Name : ZGL

Certification : ISO9001:2001

Model Number : ht7

MOQ : 10 ton

Price : 15 usd/kg

Packaging Details : Wooden Box

Delivery Time : 50 days

Payment Terms : LC/TT

Supply Ability : 4000 ton/moth

Contact Now

Chrome Plated Bars - Chrome Plated Bars Manufacturers

Chromium Bars: The Chrome Plated Bars suitable for Hydraulic Piston, Machine Tie Bar, Auto Piston Rods and any others Auto Machine Parts.The Rods can be application for Join Pen, High-Strength Screw, Bolting, Sliding Bar and Auto Parts.For Plastic Machines parts: Main Rods, Screw Bars and Feeding Bars.

Features:

  • Alloy steel subject to End-Quench Harden ability Requirements SCM440 has better Tensile Strength, Yields Strength and Elongation then Hard Chrome Plated Steel
  • With Chromium and Molybdenum Alloy, the steel has better Harden ability and mass effect to get high Toughness and low Brittleness.
  • After Induction Hardness dispose, the surface hardness could be HRC 55¢X¡Ó2

Hard Chrome Plated Bars- Chromed Bars Manufacturers

  • External Diameter Accuracy: f8
  • Surface Roughness:Ra0.2~0.4um
  • Hard Chrome Plated Thickness:20 Micron +/-10%
  • Surface Hardness:HV 800 Min.
  • Material :JIS SCM 440 / DIN 42CrMo4 / AISI 4140
Hard Chrome Shaft: all dimensions are by metric, and the tolerance per ISO system f8 specification.
Dia. (mm)
6
8
10
13
16
20
22.4
25
25.4
28
30
35
Tolerance (£gm)
-13
-35
-13
-35
-13
-35
-16
-43
-16
-43
-20
-53
-20
-53
-20
-53
-20
-53
-20
-53
-25
-64
-25
-64
Dia. (mm)
35.5
40
45
50
50.8
57
60
63
65
70
75
80
Tolerance (£gm)
-25
-64
-25
-64
-25
-64
-30
-76
-30
-76
-30
-76
-30
-76
-30
-76
-30
-76
-30
-76
-30
-76
-36
-90
Dia. (mm)
90
100
Tolerance (£gm)
-36
-90
-36
-90
Special Size and requirement can be customers make.

Diverse Application Areas:

  • Automotive Engineering
  • Mining
  • Material Handling
  • Agriculture
  • Oilfields
  • Textiles Industry
  • Railways
  • Steel Plant
  • Power Plants
  • Marine Equipment


Wholesale Hard Chrome Plated Bars - High Quality Hard Chrome Bars Manufacturers from china suppliers

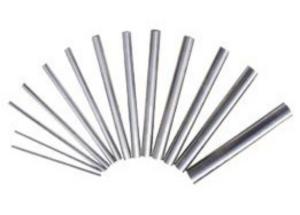

Hard Chrome Plated Bars - High Quality Hard Chrome Bars Manufacturers Images
